Filter & Cigarette Cutting Machine

Detail

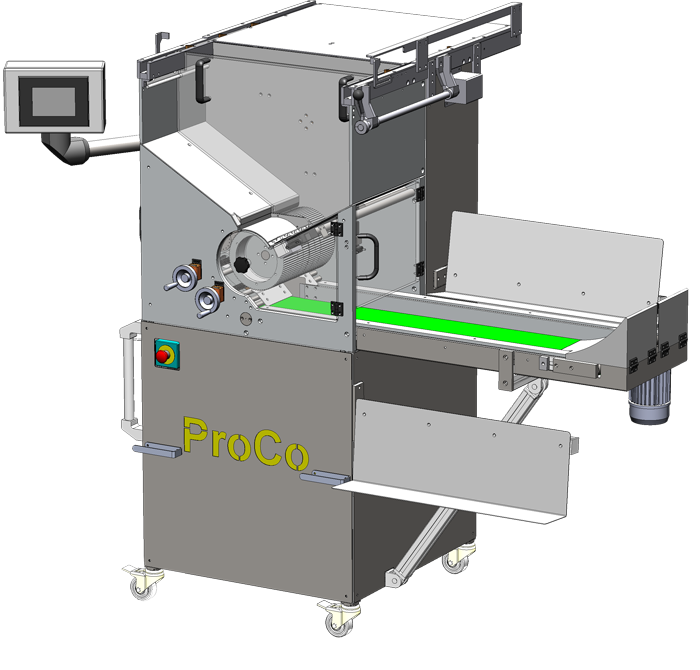

filtercutter-3dThe Filter and Cigarette Cutting Machine is a unit that has been developed taking into account the requirements for a machine with a greater product range, ease of size change, knife sharpening and general features for ease of operation.

Specification

  • Maximum filter and cigarette input length – 150mm
  • Filter and cigarette output length – 5mm to 145mm
  • Minimum cut off – 5mm
  • Diameter range – 5.4mm to 10mm
  • Output – up to 2000 rods per minute
  • Finished product position – front or rear
  • Filter and cigarette cutting – achieved by a driven high speed hardened steel knife or carbide knife for product with carbon
  • Knife sharpening – the hardened steel knife is continuously sharpened by adjustable grinding wheels
  • Speed controls – individual speed controls for the cutting roller and exit conveyor
