Cigarette Capsules Removal and Tobacco Recovery

Cigarette capsule removal to enable tobacco recovery from capsule cigarettes.

Detail

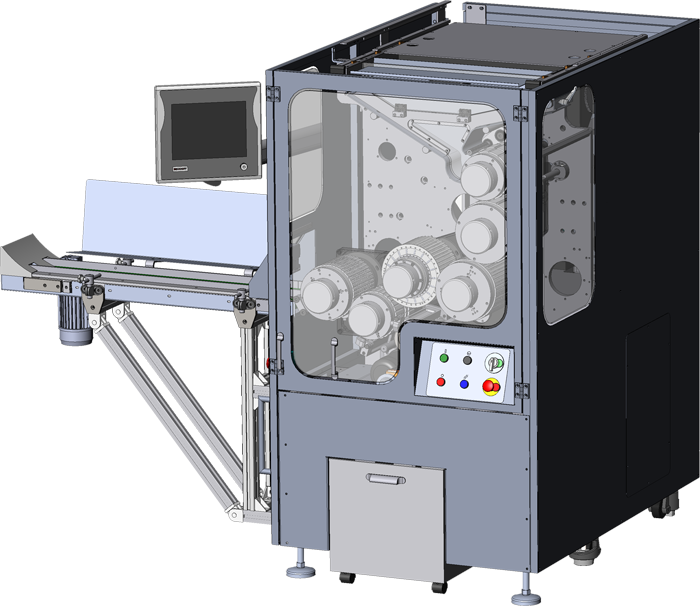

caps-32The machine is fed by trays using a pneumatically operated/indexed tray rack that accepts the standard Hauni trays. It doesn't matter if in each tray some cigarettes are TTI (tips turning in) and some are TTO (tips turning out) as the orientation can be completely random as this is detected when the cigarettes go through the hopper and onto the drums.

An alternative for feeding cigarettes without the requirement for trays is under investigation.

The cigarettes are orientated/positioned correctly on the drums then cut to enable the piece of filter containing the capsule to be removed. The remaining rod then exits the machine onto a conveyor for hand catching and tray filling or can be delivered directly to the ripper.

The machine is easily able to cope with significant range of cigarette sizes.
Features
• Pneumatically operated/indexed tray station to accommodate Hauni type tray
• Adjustable hopper to accommodate product length 55mm – 120mm
• Quick release hopper pick off drum to enable fast diameter format changes
• Detection to determine product orientation
• Quick release hopper feed drum to enable fast diameter format changes
• Quick release feed drum to enable fast diameter format changes - incorporating pulsed air jets
• Quick release swash plate drum to enable fast diameter format changes - for final accurate product positioning (or feed drum if no swash required)
• Quick release cutting drum to enable fast diameter format changes – incorporating reject of cut capsule filters
• Quick release exit drum of tobacco product to enable fast diameter format changes
• Exit conveyor and hand catching station to accommodate Hauni type tray
• HMI
• Suction fan
• Push button station
• PLC or IPC control system
• Designed and built to be CE compliant
Product Sizes
The machine is easily able to cope with significant range of cigarette sizes.
